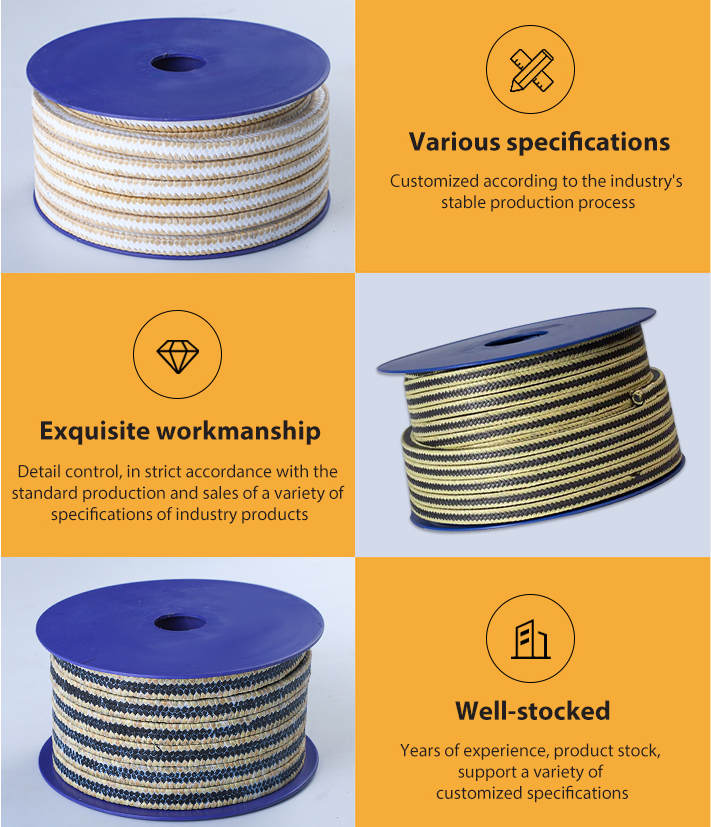

PTFE Graphite Packing With Aramid Corner

Graphite PTFE Packing with Aramid Fiber Corner Packing is a High-quality Combination of Ptfe/graphite Yarns Diagonally Braided with Corners of Aramid Fiber to Reduce Gap Extrusion. This is a Special Packing for Applications at a High-pressure Range and Simultaneous Oscillating Movements As in Plunger Pumps. The Graphite / PTFE with Aramid Corners Packing is Designed for Pump and Valve and Used in Corrosive and Abrasive Applications. It‘s Suited for Equipment Like Valves, Centrifugal, Rotary and Reciprocating Pumps, Mill Stock Pumps, Agitators or Any Other Service Where Strength and Good Lubricating Qualities Are Needed. The Gland Packing Can Be Used in Oil & Gas, Power Plants, Refineries & Petrochemical Plants, Wastewater Treatment, Sugar Plants, Pulp & Paper Industry, Marine Services. By Using This Packing, We Can Extend Shaft Life and Protect from Packing Extrusion at the Back of the Gland.

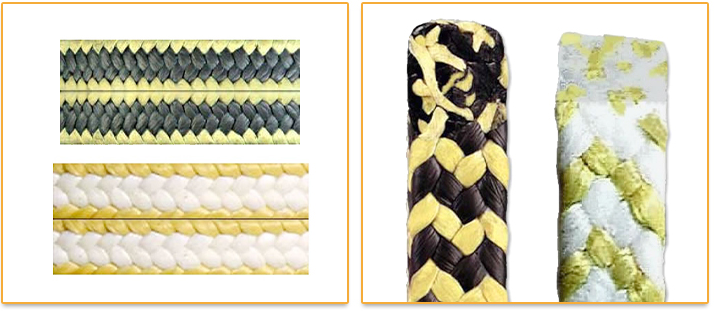

Multi-yarn Packing, the Corners of Packing Are Made of Aramid Yarns Impregnated with PTFE, While the Friction Faces Are Made of Pure PTFE Yarns. This Structure Enhances the Lubrication Ability of Aramid Fiber and Improves the Strength of the Pure PTFE. Multi-yarn in Zebra Braided Packing Consists of Pure PTFE and Aramid, Lubricated with Silicone Oil.

The Aramid Yarn is Dipped in PTFE Dispersion and Saturated and Sealed with the PTFE Particles to Protect the Kelvar Fiber from Chemical Action. the PTFE Provides the Packing with Greater Resistance to Chemical Inertness, Lower Coefficient of Friction and Prevent Damage from Chemical Fluids. the Braided Aramid / Kevlar Corner Can Reduce Extrusion and Increase Pressure and Strength Characteristics.

The Packing is Good for General Service, Agitators, Rotating and Reciprocating Pumps and is Recommended for Mild Acids, Caustics, Difficult Chemicals, Air, Gases, Solvents, Oils, General Plant Applications.

About Us:

Founded and Development

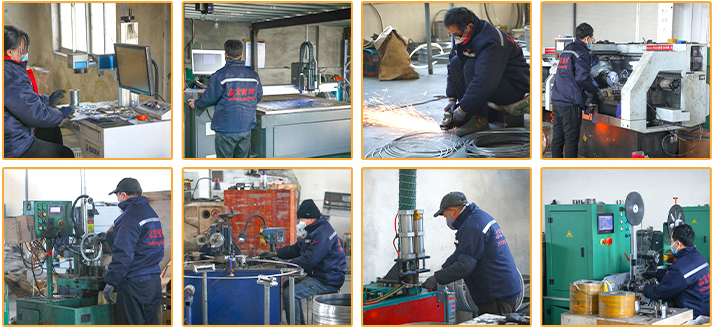

Zhihong Sealing Material Co, LTD was in Cang zhou City, Hebei Province, China. lt covers an area of 20000 square meters and a building area of 2000 square meters. After over 20 years development, we had became one professional manufacturer ofindustrial sealing materials and has the license of import and export. Now we have the fnance department, production department, technology department, quality assurance department,inspection department,foreign trade department and other departments. And we have gaskets, workshop, gasket sheet workshop, braided gland packing workshop.

What We offer

Bythe developing ofour company for over20 years, us Zhihong Sealing Material Co, LTD have full manufacturing lines of industrial sealing products,including industrial sealing gaskets such as non-metal and metal gaskets, compression braided gland packings, So we can service so many different industries such as oil and gas, chemical plants, petrochemical,mining, electronic, power stations, food, cement industries, pharmaceutical, the automotive industry, pipeline & boiler manufacturers and other key industries.

Our Vision and Mission

Zhihong Sealing Material Co, LTD , our success is a result of continually satisfying each of our customers' requirements of high performance sealing products. Our corporate quality policy is committed to offering the highest technology, the best service and the best value. And we had maintained an lSO 9001 quality management system.

Our selling prices will be generally competitive as we believe, however due consideration is always given to providing the most suitable material for the particular applications. Material performance, dependability, available alternatives, technical appraisal and production capability are all areas considered when providing the best possible price for the customer.
