Metallic Gasket

Lens Gasket

Standard：ASME | DIN 2696

Material:Stainless | Carbon | Alloy Stee

Application：RTJ Flange
FEEDBACK

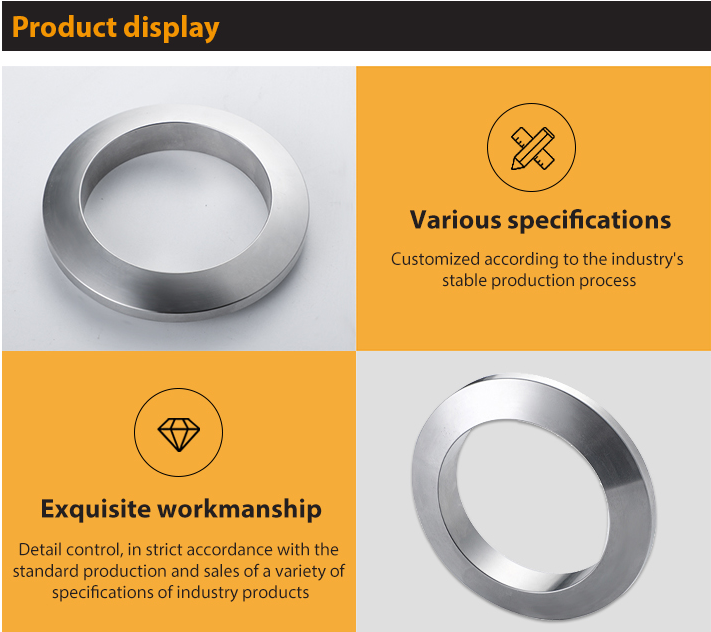

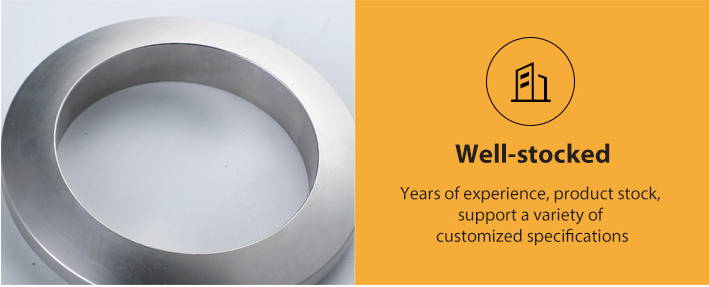

Lens Ring Type Joint Gaskets

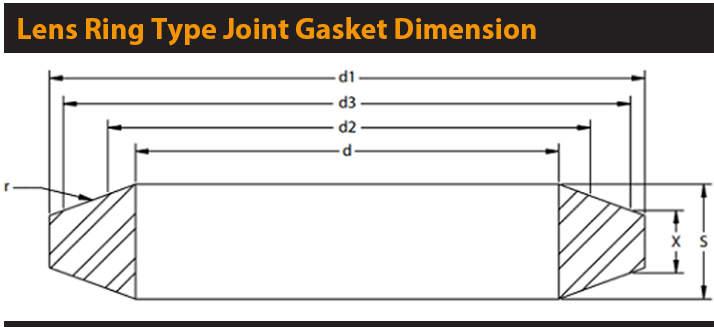

A Lens Ring Type Joint Gasket is usually a line contact seal for use in high pressure piping devices as well as in pressure vessel heads. This lens cross section is often a spherical gasket surface area and requires specific machining on the flanges. In obtaining lens gaskets, complete drawings and product technical specs need to be supplied.

With certain applications, the specifications of the high integrity metallic seal has usually lead to the selection of the actual lens ring type joint gasket, rather than much more generally known ring type joint alternative. The lens ring type joint gasket is covered solely by the DIN 2696 specifications. Having said that, ASME B16.5 and other flange styles might be customized to just accept the lens ring type joint gasket. The lens ring type joint gasket provides for a metallic gasket design incorporating spherical seating faces made to accommodate specifically mating flange recesses, offering the end user with a great sincerity, high-pressure and temperatures metallic to metal seal. Like all metal gaskets, the Lens Ring material ought to be given much softer when compared to the flange material, thereby assuring utilized compressive stress causes the elastic or plastic-type deformation of the lens ring type joint gasket and not to the particular flange sealing facial area. The circulation of high compressive loads brings about the spread out from the gasket facings, making sure over stressing of the gasket is stopped.

In accordance with DIN 2696 common components are restricted to a range of specified carbon steels and stainless levels, even though alternative grades are offered upon require. Ningbo Sunshine needs a detailed drawing be supplied when ordering non regular lens ring type joint gasket.

Lens Ring Type Joint Gasket Materials

We use large range of metal materials to produce Lens ring type joint gasket, the materials can be Soft Iron, Low C/S, ss410, ss304, ss316, ss347, F5, F11, Copper, Aluminum, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Monel 400, Titanium, Nikel 200, Hastelloy C276, Zirconium702

Lens Ring Type Joint Gasket Application

Lens Ring Type Joint Gasket is primarily used in the oil, gas, petrochemical and offshore industries. They are also commonly used on valves, pipe-work assemblies and vessel joints and are used to seal flanged connections subject to high pressures and temperatures.

Product Advantages:

High-Pressure Resistance

Lens ring gaskets from ZhiHong Sealing are engineered to withstand extremely high pressures, ensuring

superior sealing performance even in the most demanding applications. Our gaskets are ideal for

industries such as petrochemical, energy, and marine, where leakage prevention is critical. With top-

quality materials like stainless steel and alloy steel, they offer long-lasting pressure resistance, reducing

maintenance and downtime.

Customizable Designs for Any Application

Every sealing solution is unique, which is why we offer customized lens ring gaskets tailored to your exact

specifications. Whether you need a custom size, material, or flange design, we ensure a perfect fit for

your system. Our expertise in custom gasket manufacturing ensures compatibility with a wide range

of industrial applications.

Durable Materials for Extended Service Life

We use only premium materials like carbon steel, stainless steel, and other high-performance alloys to

produce our lens ring gaskets. These materials are carefully selected for their ability to withstand extreme

pressures, high temperatures, and corrosive environments, ensuring long-term durability and optimal

sealing performance.

About Us:

Founded and Development

Zhihong Sealing Material Co, LTD was in Cang zhou City, Hebei Province, China. lt covers an area of 20000 square meters and a building area of 2000 square meters. After over 20 years development, we had became one professional manufacturer ofindustrial sealing materials and has the license of import and export. Now we have the fnance department, production department, technology department, quality assurance department,inspection department,foreign trade department and other departments. And we have gaskets, workshop, gasket sheet workshop, braided gland packing workshop.

What We offer

Bythe developing ofour company for over20 years, us Zhihong Sealing Material Co, LTD have full manufacturing lines of industrial sealing products,including industrial sealing gaskets such as non-metal and metal gaskets, compression braided gland packings, So we can service so many different industries such as oil and gas, chemical plants, petrochemical,mining, electronic, power stations, food, cement industries, pharmaceutical, the automotive industry, pipeline & boiler manufacturers and other key industries.

Our Vision and Mission

Zhihong Sealing Material Co, LTD , our success is a result of continually satisfying each of our customers' requirements of high performance sealing products. Our corporate quality policy is committed to offering the highest technology, the best service and the best value. And we had maintained an lSO 9001 quality management system.

Our selling prices will be generally competitive as we believe, however due consideration is always given to providing the most suitable material for the particular applications. Material performance, dependability, available alternatives, technical appraisal and production capability are all areas considered when providing the best possible price for the customer.
