Semi-Metallic Gasket

Graphite Gasket

Types:Tanged | Reinforced | Flexible

Temperature：500-900

Application：Steam | Flange | Exhaust
FEEDBACK

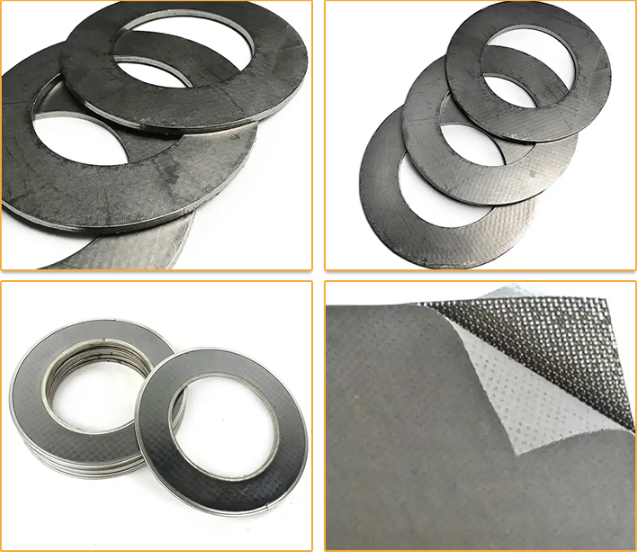

Reinforced Graphite Gasket is One of Composite & High-temperature Gaskets. Flexible Graphite Gasket Are Cut from Pure Graphite Sheet Which Has Excellent Characteristic That is Enduring in the High Temperature and Corrosion. It is the Sealing Component of the Pipe, Valve, Pump, Pressure Vessel, Radiator, and Compensator. 5 Types Graphite Gasket Graphite Meet to Different Working Operation.

Made of Flexible Graphite Gasket Which Contains Typically 98% Graphite, It Offers Superior High-Temperature Sealing

Laminated Graphite Gaskets Constructed Exclusively of Layers of Pure Graphite Make the Desired Thickness.

Graphite Reinforced Gaskets

Comprising Two Outer Layers of Graphite Foil with a Central Stainless Steel Core 0.05mm Thick,

the Layers Are Bonded Together In-house with a Unique High-temperature Adhesive Bonding System

That Does Not Delaminate During Punching, Storage and Use.

Graphite SS Tanged Gasket

Comprising Two Outer Layers of Graphite Foil with a Central Tanged Stainless Steel Core 0.1mm Thick,

the Layers Are Mechanically Pressed Together In-house with a Laminating Technique That Does Not Delaminate During Punching, Storage and Use.

Graphite Gasket with SS Wire Mesh

Comprising a Stainless Wire Mesh and 2 Layers 98% Graphite

Note: All Above Gasket Can Be Metal Eyeleted as Your Request. The Metal Eyeleted Flat

Gaskets Offer Special Protection Against Blowout For the Sealing of Critical or.

How to Order

· Standard: for Example ASME B 16.21

· Size: 1/2"150 or Special Like 21x33x3

· Material: Pure Graphite or Graphite Tanged SS304

· Type: with Outer Eyelets or with Eyelets Inner & Outer

Product Advantages：

High-Temperature Resistance

Our graphite gaskets can withstand temperatures up to 900°C, making them ideal for high-temperature

applications in industries such as power generation and chemical processing.

Excellent Chemical Compatibility

The high-purity graphite material offers outstanding resistance to a wide range of chemicals, ensuring

longevity and reliability in corrosive environments.

Superior Compression Set Resistance

These gaskets maintain their sealing properties over time, even under prolonged compression, reducing

the need for frequent replacements.

Easy Installation

The flexibility of graphite allows for easy installation, conforming to flange surfaces and ensuring a tight

seal without the need for excessive bolt load.

Customizable Solutions

We provide custom gasket maker services, allowing for the production of gaskets tailored to your specific

dimensions and material requirements.

About Us:

Founded and Development

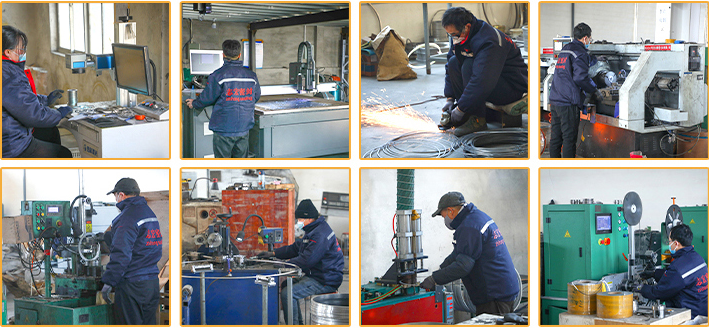

Zhihong Sealing Material Co, LTD was in Cang zhou City, Hebei Province, China. lt covers an area of 20000 square meters and a building area of 2000 square meters. After over 20 years development, we had became one professional manufacturer ofindustrial sealing materials and has the license of import and export. Now we have the fnance department, production department, technology department, quality assurance department,inspection department,foreign trade department and other departments. And we have gaskets, workshop, gasket sheet workshop, braided gland packing workshop.

What We offer

Bythe developing ofour company for over20 years, us Zhihong Sealing Material Co, LTD have full manufacturing lines of industrial sealing products,including industrial sealing gaskets such as non-metal and metal gaskets, compression braided gland packings, So we can service so many different industries such as oil and gas, chemical plants, petrochemical,mining, electronic, power stations, food, cement industries, pharmaceutical, the automotive industry, pipeline & boiler manufacturers and other key industries.

Our Vision and Mission

Zhihong Sealing Material Co, LTD , our success is a result of continually satisfying each of our customers' requirements of high performance sealing products. Our corporate quality policy is committed to offering the highest technology, the best service and the best value. And we had maintained an lSO 9001 quality management system.

Our selling prices will be generally competitive as we believe, however due consideration is always given to providing the most suitable material for the particular applications. Material performance, dependability, available alternatives, technical appraisal and production capability are all areas considered when providing the best possible price for the customer.
